D802 Receipt Printer
Model: D802
Description: Desktop receipt printer, Direct thermal printer
Key parameter: 80mm paper width (3inch)
83mm paper diameter
USB+Ethernet, USB+Ethernet+Bluetooth, USB+Ethernet+WiFi
250mm/s
Features:
* D802 receipt printer, 80mm width, 250mm/s fast printing
* Thermal receipt printer with multiple interfaces, easy to control
* 2-in-1 interfaces (USB+100M Ethernet) and inverted design of motherboard, ideal for kitchen.
* Wireless funtion for option: USB+Ethernet+Bluetooth, USB+Ethernet+WiFi
* Faster connection by 100M Ethernet port to avoid receipt misprinting.
* D802 receipt printer with built-in WEB page to set up printer directly and easily.
* 80mm direct thermal Printer supports Ethernet printing status monitor, support more printers working in the same network.
* Auto-recovery printing after internet disconnection.
Specification
|
Printing |
Print method |
Direct thermal |
|
Paper |
Width: 79.5±0.5mm, diameter: Φ80mm, thickness: 0.06~0.08mm |
|
|
Dot Density |
512 / 576dot/line |
|
|
Print speed |
250mm/s |
|
|
Interface |
USB+Ethernet, (standard) USB+Ethernet+Bluetooth (Optional) USB+Ethernet+WiFi (Optional) |
|
|
Line space |
3.75mm (can be adjustive) |
|
|
Commands |
Compatible with ESC/POS |
|
|
Character Size |
ANK character, Font A：12x24dot |
|
|
Font B：9x17dot |
||
|
Simplified/Traditional Chinese：24x24dot |
||
|
Barcode |
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai) |
|
Barcode mode |
UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8)CODE39, ITF, CODABAR, CODE93, CODE128, QR CODE |
|
|
Fonts |
GB18030 |
|
|
Buffer |
Input Buffer |
800KB~1MB |
|
NV Flash |
256K bytes |
|
|
Power |
Cashdrawer out |
DC 24V/1A |
|
Power adaptor |
Input：AC 110V/220V, 50~60Hz Output：DC 24V/2.5A |
|
|
Power supply |
DC 24V/2.5A |
|
|
Physical |
Weight |
1.50kg |
|
Dimension |
204x147x138mm |
|
|
Reliability |
Mechanism |
150km |
|
Auto cutter |
1.5 million cuts |

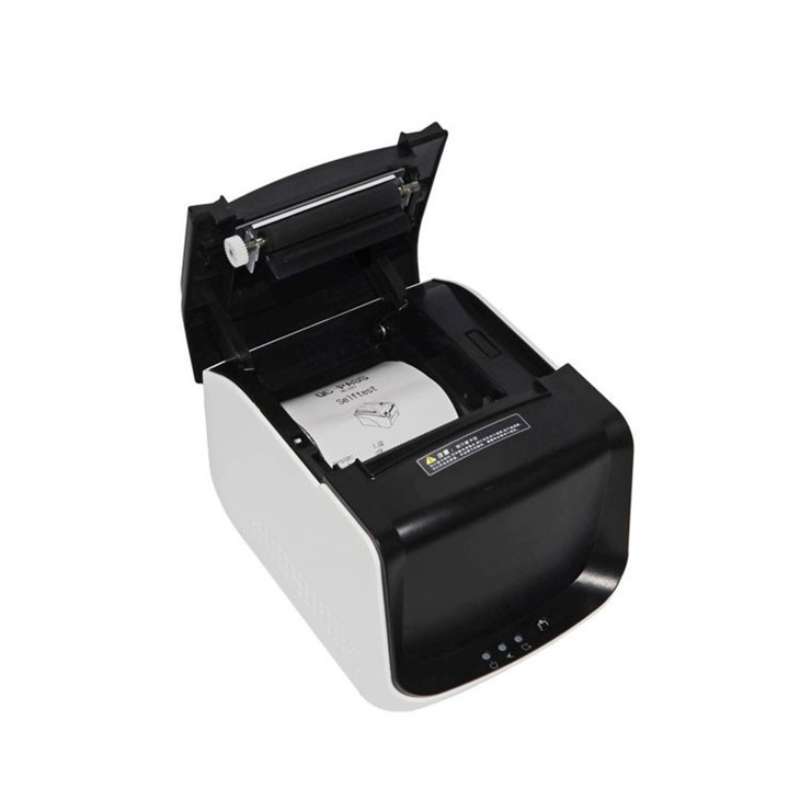

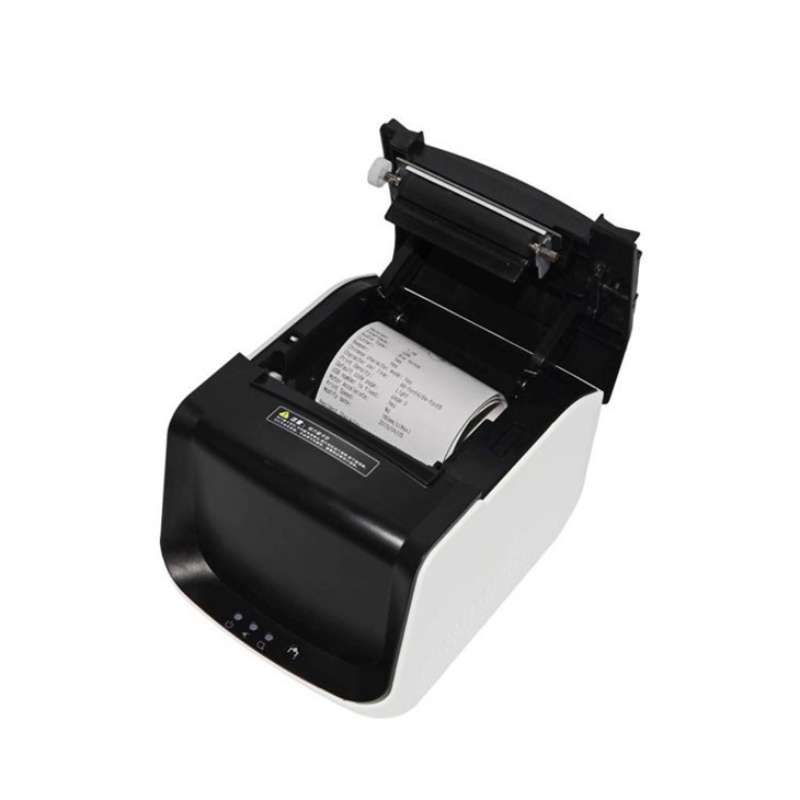

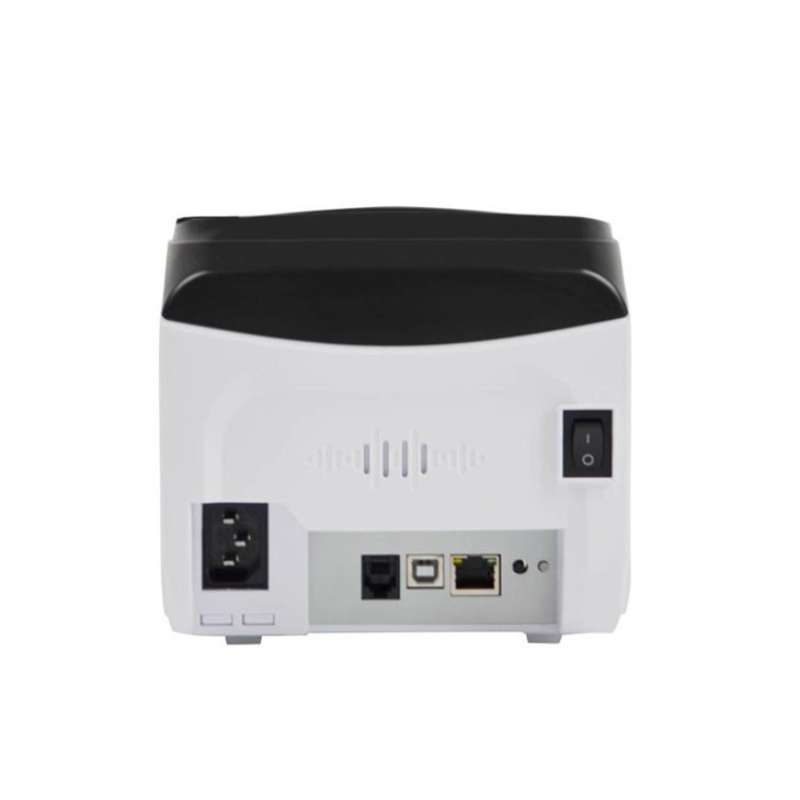

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
D802 Receipt Printer |
2.0 |
6 pcs/carton |
13.5 |
68*50*29 |
