Android POS

M102L POS Monitor
51256478956

M102L POS Monitor

Model: M102L
Description: Restaurant POS, Retail POS system, POS restaurant, POS systems bars, Android POS, retail point of sale
Key parameter: 11.6 inch single display
1366*768
10-points touch screen
Android 7.1
2G+16G
Built-in 58mm thermal printer
90mm/s printing speed

Send Inquiry

Features:

Retail point of sale systems, ARM chip, Eight-Core Processor
Restaurant cash register, Android 7.1

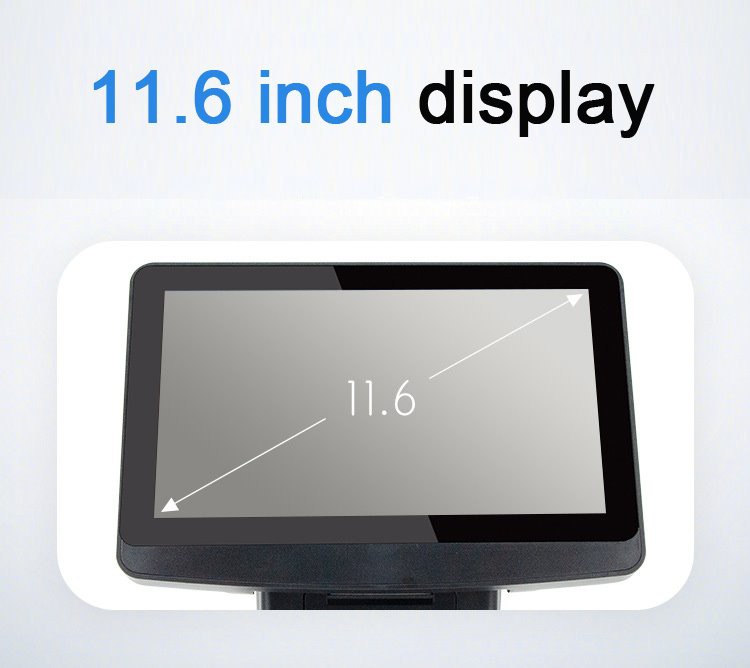

M102L POS Monitor Display: 11.6 inch, 1366*768

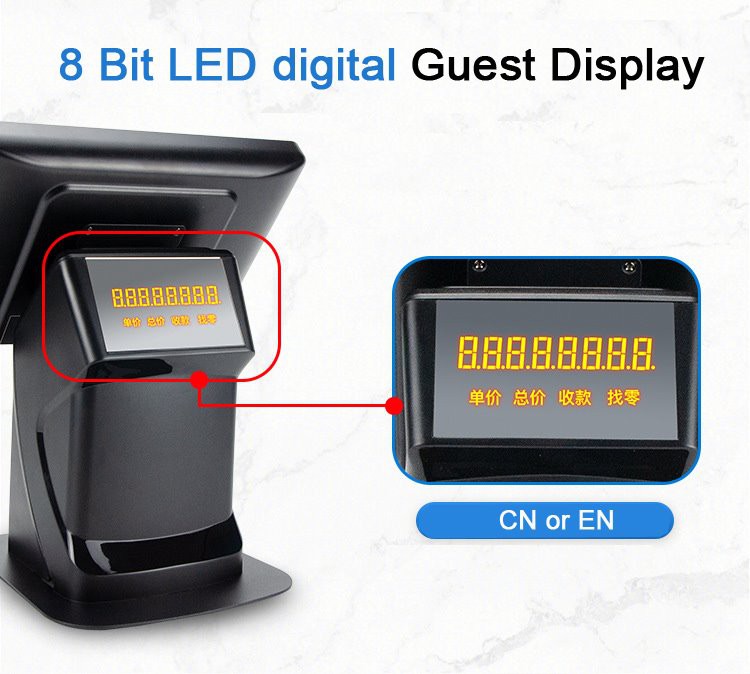

M102L POS Monitor Guest Display: 8 bit LED digital (CN/EN LCD display for option)
M102L POS Monitor comes with built-in Wi-Fi and Bluetooth

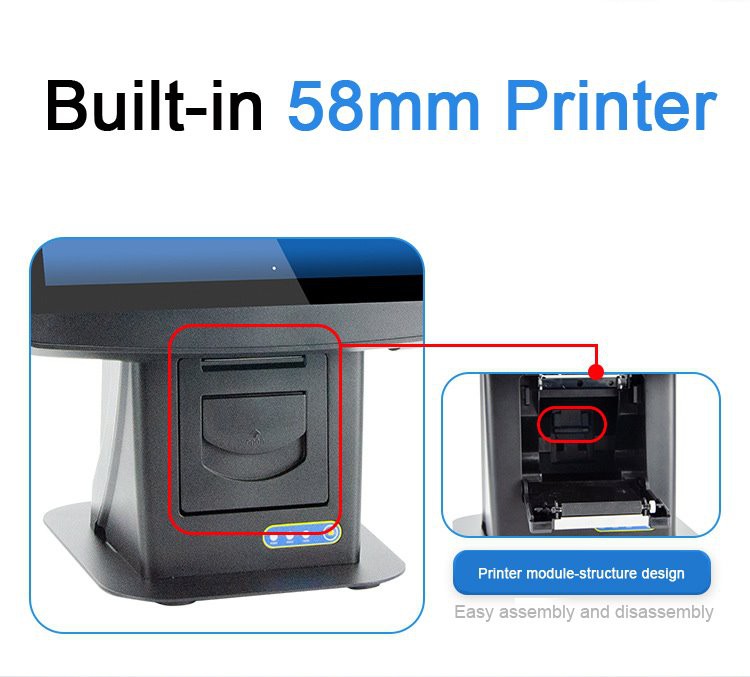

Built-in 58mm thermal printer, printer module-structure design, easy assembly and disassembly, low maintenance cost
90mm/sec printing speed, supports GB18030, BIG5 and more code page

Specification

Control Component	CPU	ARM Cortex-A53 64bit 8-core
	RAM	2GB RAM
	ROM	16GB ROM
	Operation System	Android 7.1
	Bluetooth	Bluetooth 4.0
	WiFi	802.11 b/g/n
Display	Main Display Screen	11.6 inch
	Resolution	1366*768 Pixel (Standard)
	Operation	10 points touch capacitive touch panel
	Guest Display	8 bit LED digital display

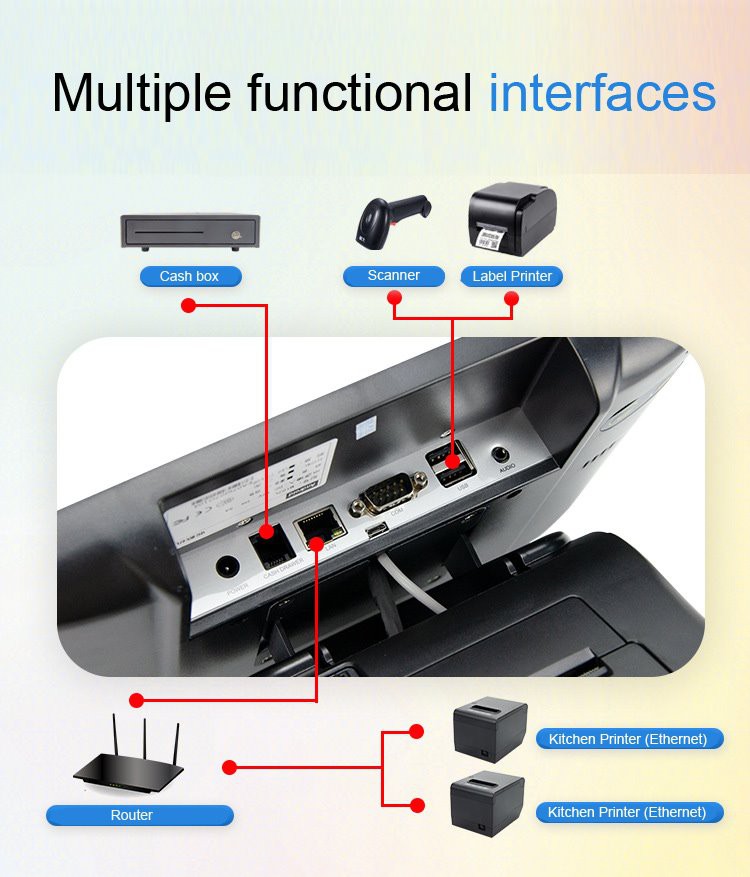

I/O Port	RS232	1x RS232 (RJ11)
	USB	2x USB2.0
	Power port	1x Power port
	OTG	1x OTG
	LAN	1x RJ45 (10/100M)
	Cash drawer	1x RJ12 (12V)
	Audio	1xAudio
Physical	Power	12V/5A
	Color	Black

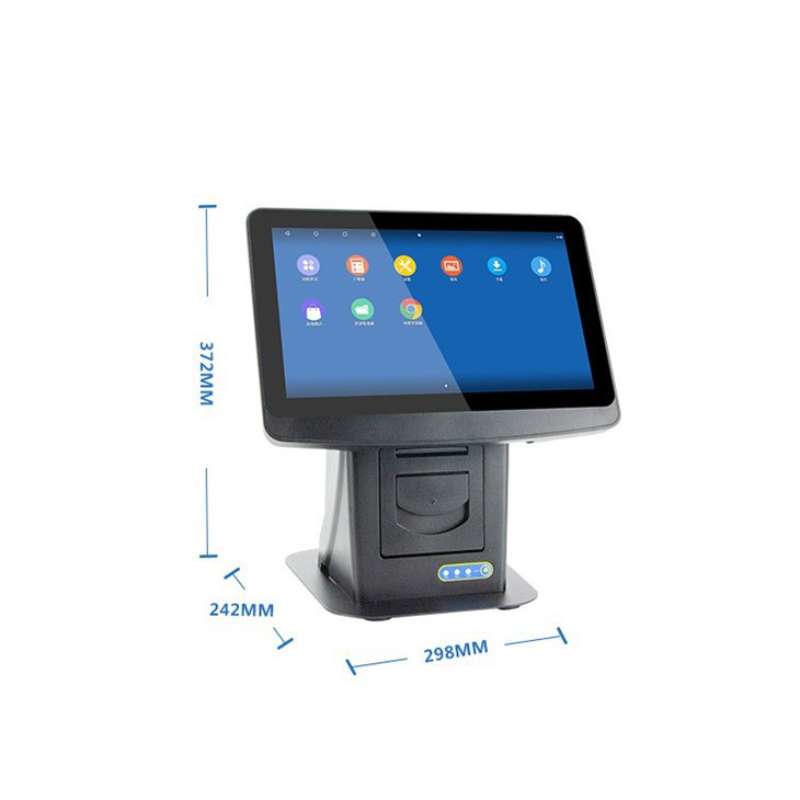

	Dimension	298242372mm (LxWxH)
	Packing dimension	400300390mm (LxWxH)
Built-in Printer	Paper width	57.5±0.5mm
	Print speed	90mm/sec
	Resolution	203 DPI
	Commands	Compatible with ESC/POS
	Fonts	GB18030, BIG5
	Character Size	ANK character, Font A：12x24dot
		Font B：9x17dot
		Simplified/Traditional Chinese：24x24dot
	Code page	PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai)
	Reliability	Mechanism: 50KM
